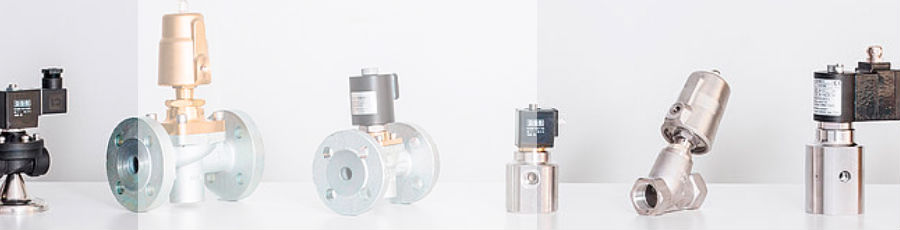

Cryogenic valves
Our cryogenic valves for cryogenic temperatures down to -196 °C.
| Series | Design | Inter thread Seat diameter | Flange | Pressure range | Housing material | Medium temperature | Downloads | |
 | K35 | 2/2-way solenoid valve with piston seal force pilot operated | G1/4-G2 13.5-50 mm | -- | 0-40 bar | Brass 2.0402 Stainless steel 1.4581 | -60 °C/ +80 °C | |
 | K37 | 2/2-way solenoid valve with piston seal force pilot operated | 15-50 mm | DN15-DN50 | 0-40 bar | Cast iron EN-GJL-250 Cast steel GP240 GH Stainless steel 1.4581 | -60 °C/ +80 °C | |
 | K24 | 2/2-way solenoid valve with piston seal force pilot operated | -- | DN65-DN100 | 0-40 bar | Stainless steel 1.4581 | -60 °C/ +80 °C | |
 | 46TK | 2/2-way solenoid valve with piston seal pilot operated | G1/4-G1/2 8 mm | -- | 1-16 bar 1-30 bar | Stainless steel 1.4581 Stainless steel 1.4404 | -196 °C/ +80 °C | |
 | K91 | 2/2-way solenoid valve with piston seal force pilot operated | G1/4-G2 13.5-50 mm | -- | 0-16 bar | Brass 2.0402 Stainless steel 1.4581 | -196 °C/ +80 °C | |
 | A91 | 2/2-way solenoid valve with piston seal force pilot operated | G1/4-G2 13.5-50 mm | -- | 0-16 bar | Brass 2.0402 Stainless steel 1.4581 | -196 °C/ +60 °C | |
 | B91 | 2/2-way solenoid valve with piston seal force pilot operated | G1/4-G2 13.5-50 mm | -- | 0-40 bar | Stainless steel 1.4404 | -196 °C/+60 °C | |
 | A90 | 2/2-way valve with plate seal directly pressure controlled | G1/4-G2 13.5-50 mm | -- | 0-16 bar | Stainless steel 1.4581 | -196 °C/ +60 °C | |
 | B90 | 2/2-way valve with plate seal directly pressure controlled | G1/4-G2 13.5-50 mm | -- | 0-40 bar | Stainless steel 1.4404 | -196 °C/+60 °C |
