PRODUCT AREAS
High temperature valves

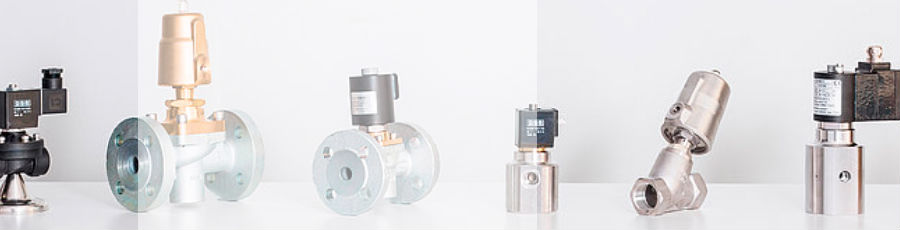

Our valves for high temperatures up to +400 °C.
| Series | Design | Inter thread Seat diameter | Flange | Pressure range | Housing material | Medium temperature | Downloads | |
 | 40TM | 2/2-way solenoid valve with diaphragm seal, pilot operated | G1/4-G2 13-50 mm | -- | 0.3-20 bar | Brass 2.0402 Stainless steel 1.4581 | up to +140 °C | |
 | 28TM | 2/2-way solenoid valve with diaphragm seal, pilot operated | -- | DN15-DN50 | 0.3-20 bar | Cast iron EN-GJL-250 Cast steel GP240 GH Stainless steel 1.4581 | up to +140 °C | |
 | 43TM | 2/2-way solenoid valve with diaphragm seal, force pilot operated | G1/4-G2 13.5-50 mm | -- | 0-16 bar | Brass 2.0402 Stainless steel 1.4581 | up to +140 °C | |
 | 27TM | 2/2-way solenoid valve with diaphragm seal, force pilot operated | -- | DN15-DN50 | 0-16 bar | Cast iron EN-GJL-250 (DN20-50) Cast steel GP240 GH (DN15-50) Stainless steel 1.4581 (DN15-50) | up to +140 °C | |
 | 35TH | 2/2-way solenoid valve with piston seal force pilot operated | G1/4-G2 13-50 mm | -- | 0-40 bar | Brass 2.0402 Stainless steel 1.4581 | up to +180 °C up to +200 °C | |
 | 24TH | 2/2-way solenoid valve with piston seal force pilot operated | -- | DN65-DN200 | 0-40 bar | Spheroidal cast iron EN-GJS-400-19-LT Cast iron EN-GJL-250 Cast steel GP240 GH Stainless steel 1.4581 | up to +180 °C up to +200 °C | |
 | 37TH | 2/2-way solenoid valve with piston seal force pilot operated | -- | DN15-DN50 | 0-40 bar | Cast iron EN-GJL-250 Cast steel GP240 GH Stainless steel 1.4581 | up to +180 °C up to +200 °C* | |
 | 25TH | 2/2-way solenoid valve with piston seal pilot operated | -- | DN65-DN150 | 1-13 bar | Cast iron EN-GJL-250 Cast steel GP240 GH | up to +200 °C | |
 | 51TH | 2/2-way solenoid valve with piston seal pilot operated | G1/4-G2 13.5-50 mm | -- | 0.5-40 bar | Brass 2.0402 Stainless steel 1.4581 | up to +180 °C | |
 | 54TH | 2/2-way solenoid valve with piston seal pilot operated | DN15-DN50 | 0.5-40 bar | Cast iron EN-GJL-250 | up to +180 °C | ||
 | 63DT | 2/2-way valve with plate seal directly pressure controlled | G1/2-G3 13-76 mm | -- | 0-40 bar | Gunmetal RG5 Brass 2.0402 Stainless steel 1.4408 | up to +250 °C | |
 | 24DT | 2/2-way solenoid valve with piston seal force pilot operated | -- | DN65-DN100 | 0-40 bar | Cast steel GP240 GH Stainless steel 1.4581 | up to +250 °C | |
 | 35DT | 2/2-way solenoid valve with piston seal force pilot operated | G1/4-G2 13.5-50 mm | -- | 0-40 bar | Brass 2.0402 Stainless steel 1.4581 | up to +250 °C | |
 | 37DT | 2/2-way solenoid valve with piston seal force pilot operated | -- | DN15-DN100 | 0-40 bar | Cast steel GP240 GH Stainless steel 1.4581 | up to +250 °C | |
 | 63 DTE | 2/2-way valve with plate seal directly force pilot operated | G1/2-G2 13-45 mm | -- | 0-40 bar | Stainless steel 1.4408 / 1.4571 | up to +300 °C | |
 | 2/164FL | 2/2-way solenoid valve with piston seal force pilot operated | -- | DN15-DN100 | 0-40 bar | Cast steel GP240 GH Stainless steel 1.4581 | up to +300 °C | |
 | 2/164 | 2/2-way solenoid valve with piston seal force pilot operated | G1/4-G2 13-50 mm | -- | 0-40 bar | Brass 2.0402 Stainless steel 1.4581 / 1.4571 | up to +300 °C | |
 | 2/640FL | 2/2-way valve with plate seal directly pressure controlled | -- | DN65-DN100 | 0-40 bar | Cast steel GP240 GH | up to +400 °C | |
 | 2/640 | 2/2-way valve with plate seal directly pressure controlled | G1/4-G2 15-50 mm | -- | 0-40 bar | Cast steel GP240 GH Stainless steel 1.4571 | up to +400 °C |
