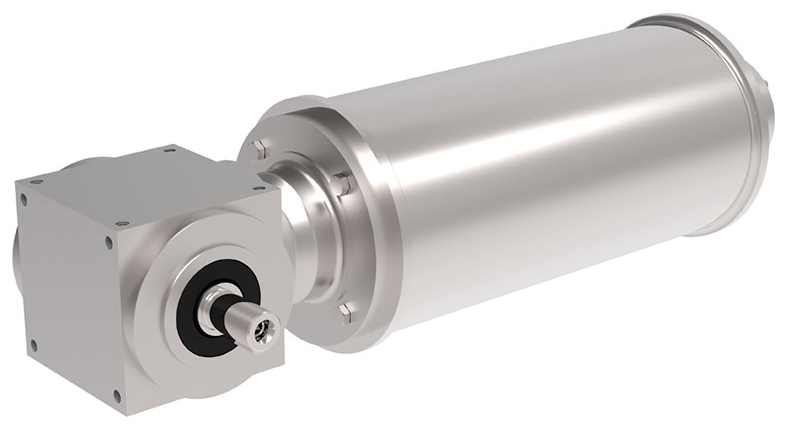

Type HDVLM
Hygienic design gearbox with stainless steel motor
With motor – For the pharmaceutical and food processing industries
The choice of materials, design and surface finish guarantee optimum cleaning properties and maximum hygiene. The design of all external components in stainless steel effectively prevents any form of corrosion and is also acid and alkali-resistant. The typical product qualities such as smooth running, high efficiency, robustness and accuracy are guaranteed and excellent delivery capability is a matter of course.
Features
Including motor and gearbox
Gearbox sizes HDVL 065 to HDVL 140
Power range from 0.25 -2.2KW
Translations i=1:1 to 6:1
Maximum output torque of 430 Nm
The housing and the flanges contain no holes and other dirt pockets. Required mounting holes are drilled according to customer specifications for the specific application
Food lubrication NOTOX
Corrosion-resistant: Ideal for areas with high humidity or aggressive cleaning agents.
Rugged and durable: Stainless steel housing for exceptional durability in demanding environments.
Hygienic design: Smooth surfaces (surface roughness with Ra <=0.8) and gap-free construction enable easy cleaning and prevent the accumulation of dirt.
Powerful and efficient: Precise power transmission for maximum efficiency, even under high loads.
Low maintenance: Thanks to the robust design and durable material, regular maintenance intervals are minimised.
