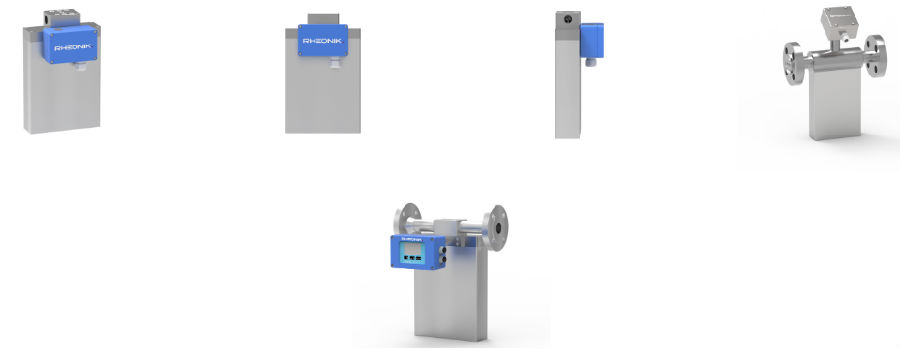

RHM 10

FLOWSENSOR

The Model RHM 10 is perfect for small scale production with continuous low flow and small batch dispensing requirements. With a variety of construction styles, the RHM 10 is ideal for countless flow applications.

• Range: 0.25 kg/min up to 90 kg/min

• Pressure: up to 1384 bar (20073 psi)

• Temperature: -196°C (-321°F) up to +350°C (662°F)

• Accuracy: 0.1 % of rate

• Materials: SS 316L / SS 316Ti, Super Duplex – 1.4410, Sandvik HP160, Alloy C22 – 2.4602

• Process Connection: ½" up to 1 ½"
