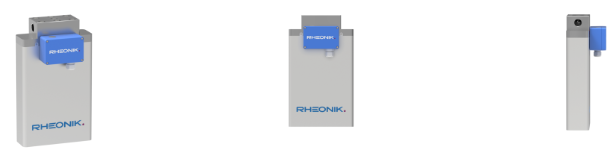

RHM 15

FLOWS ENSOR

The RHM 15 is an all-purpose meter suitable for liquid processing plants. A wide application flow range capability allows for commonality of installation acrossnumerous lines – a real benefit to owners and operators.

Range: 0 kg/min up to 240 kg/min

Pressure: up to 359 bar (5206 psi)

Temperature: -50°C (-58°F) up to +210°C (410°F)

Accuracy: 0.1 % of rate

Materials: SS 316L / SS 316Ti, Alloy C22 – 2.4602, Super Duplex – 1.4410, Tantalum – UNSR05200

Process Connection: ¾" up to 2"
