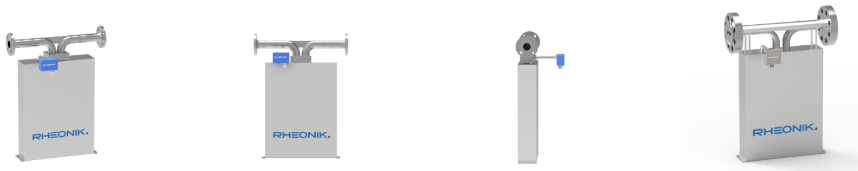

RHM 30

FLOW SENSOR

The RHM 30 is available with a wide choice of material options to suit benign and aggressive applications. Heavy duty variants meet high pressure and high temperature needs while providing the highest accuracy performance.

• Range: 10 kg/min up to 900 kg/min

• Pressure: up to 405 bar (5874 psi)

• Temperature: -196°C (-321°F) up to +350°C (662°F)

• Accuracy: 0.1 % of rate

• Materials: SS 316L / SS 316Ti, Alloy C22 – 2.4602, Super Duplex – 1.4410, Tantalum – UNSR05200

• Process Connection: 1 ¼" up to 3"
