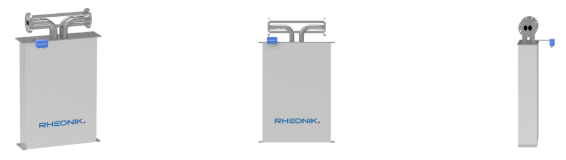

RHM 60

FLOW SENSOR

The RHM 60 is a robust sensor designed for 4″ line sizes. The availablity of avariety of wetted materials and wide pressure/temperature ratings allow use in applications throughout all industries.

• Range: 30 kg/min up to 3000 kg/min

• Pressure: up to 430 bar (6236 psi)

• Temperature: -196°C (-321°F) up to +350°C (662°F)

• Accuracy: 0.1 % of rate

• Materials: SS 316L / SS 316Ti, Super Duplex – 1.4410, Alloy C22 – 2.4602

• Process Connection: 4" up to 4"
