The spring-applied shaft brakes provide reliable and precise braking force for industrial applications. They are designed so that the stator assembly is firmly connected to a stationary machine part, while the rotor assembly sits securely on the rotating shaft, ensuring reliable braking action.
Special optional features:
Additional hand lever for manual ventilation
Adjustable torque
How it works: When de-energized, the rotor presses against the friction linings and thus generates the braking force. When voltage is applied, the brake is released and the shaft can rotate freely. This ensures safe and controlled movement of the shaft.
Areas of application: Ideal for conveyor systems, robots, machine tools and elevators where precise motion control and safety are critical.

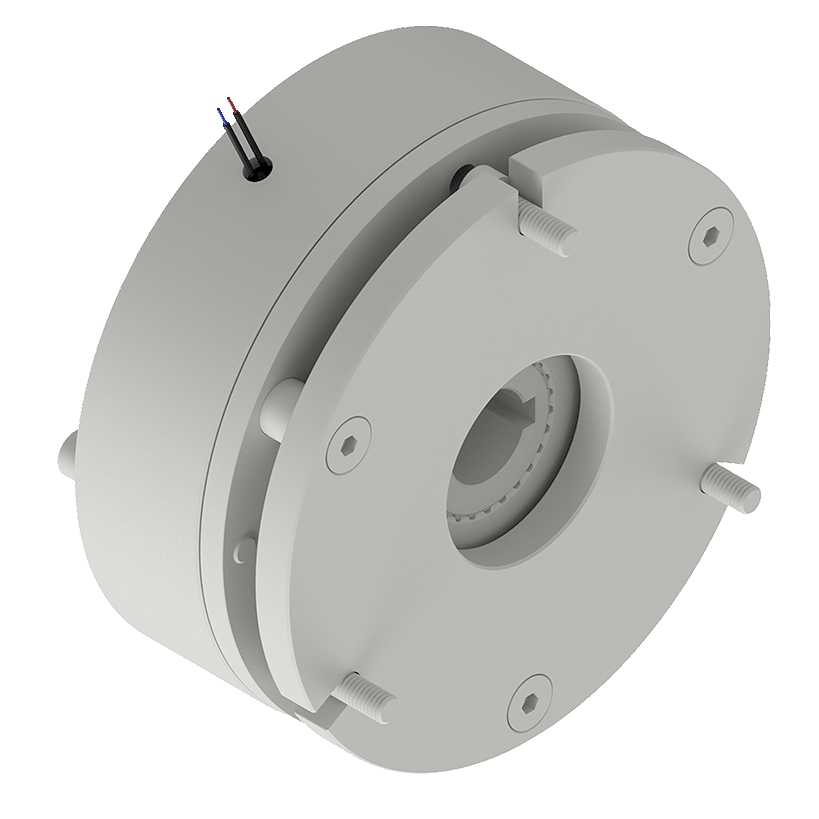

Type WFG
Spring-operated closing, electromagnetically operated opening
Safety brake – passive lever brake –spring-operated and electromagnetically released
Features
Nominal torque: 0.12 Nm – 1,500 Nm
Sizes: WFG 031 bis WFG 190
Powerful
Mounted directly on shaft
Space-saving design
Minimum axial installation space
Fast response time
