Gears
Overview

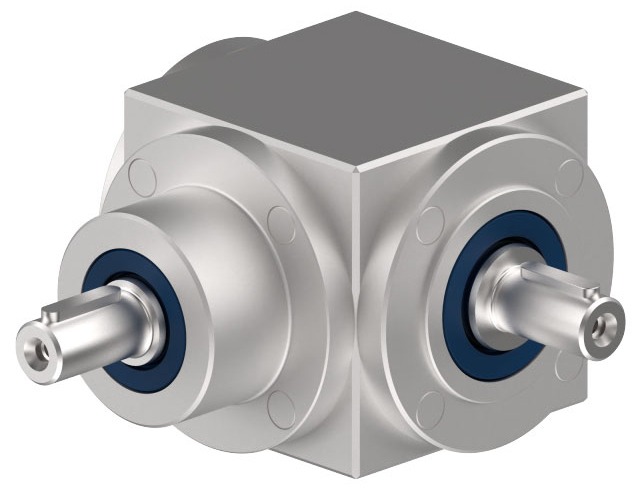

Bevel gearbox 1-stage; V to slow speed; VS to fast speed
 | |
Type V | Type VS |
| Translated into slow | Translated into fast |
Type L
Miniature bevel gearbox
Bevel gearboxes based on the guidelines of the European Hygienic Engineering Design Group (EHEDG)
 | |

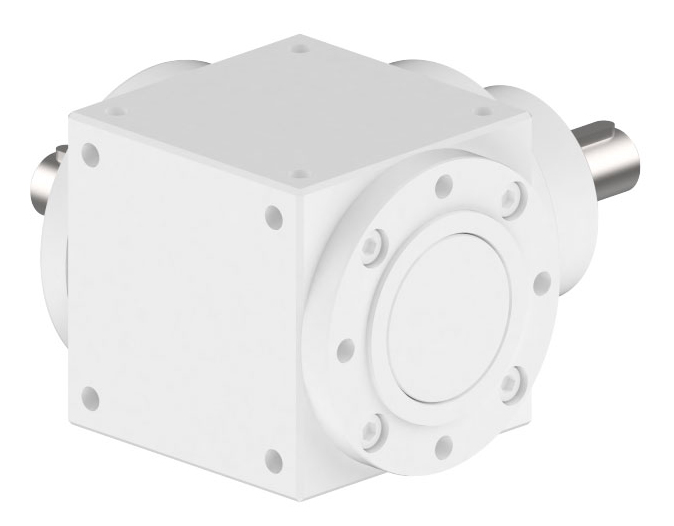

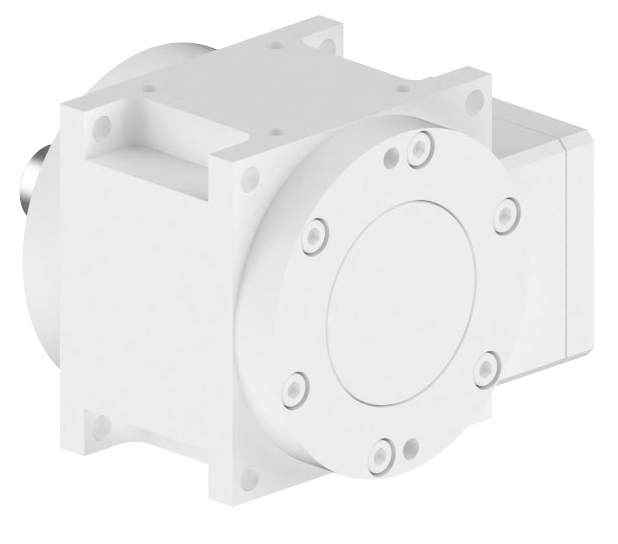

Type HDV | Type HDVS |
| Hygienic Design bevel gearbox with low-speed transmission | Hygienic Design bevel gearbox with high-speed transmission |
Gearbox with offset
Hypoid gearbox
Coaxial gearbox; 1- to 2-stage
Type PCE
Planetary gearbox
Planetary gear with bevel gear in the preliminary stage; max. 3-stage
Bevel planetary gearbox
Helical worm shaft with gear wheel
Type S
Worm gearbox
Optimised for mounting a servomotor, IEC motor or stainless steel motor; 1-stage
 |  |  |
Type LC | Type VC | Type VCE |

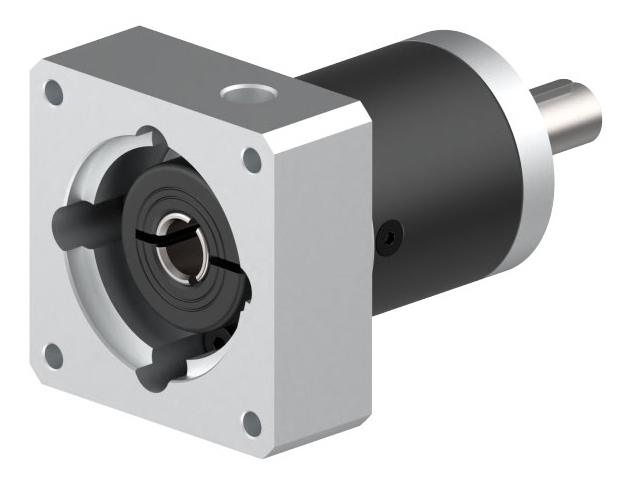

| Miniature bevel gearbox with servo flange | Bevel gearbox with servo motor flange | Bevel gearbox with clamping set for mounting a servomotor or planetary gearbox |
 |  |  |
Type HC | Type SC | Type VL |
| Hypoid gearbox with servo motor flange | Worm gearbox with servo flange | Bevel gearbox with IEC motor flange |
 |  | |
Type SL | Type HDVL | |

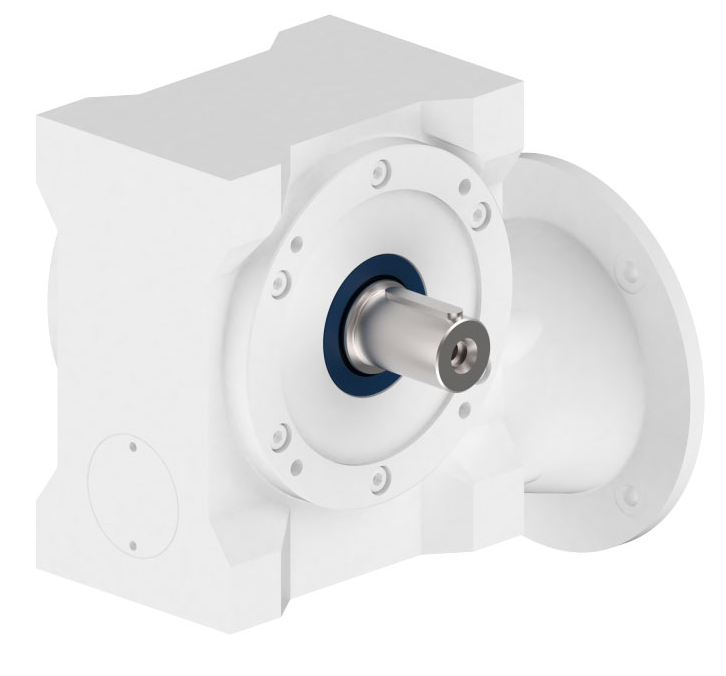

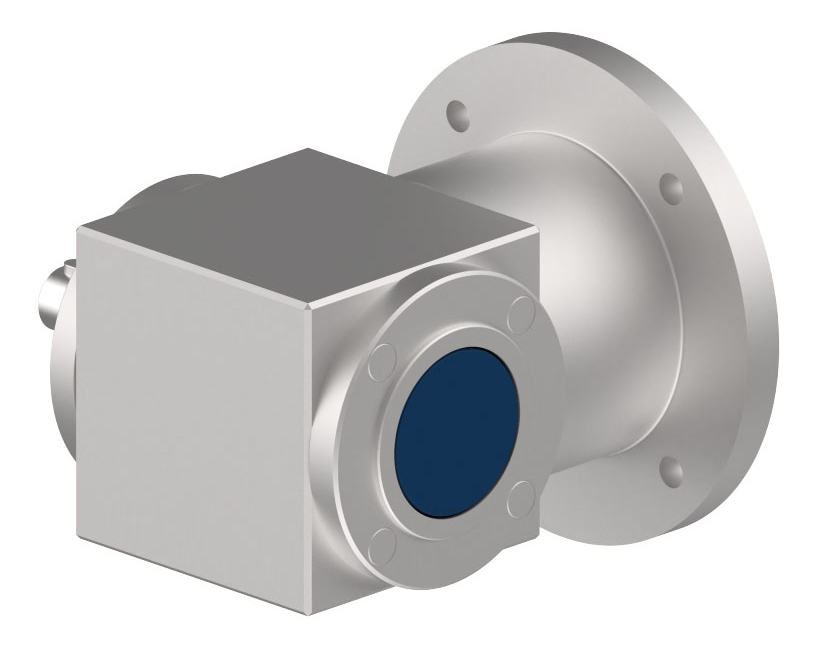

| Worm gearbox with flange for IEC standard motor | Hygienic Design bevel gearbox with stainless steel motor flange |
