Turn Out
Note: It can be customized and adjusted according to customers’ requirements or design.

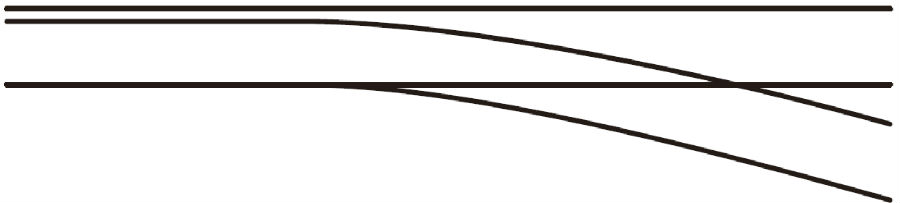

Simple Turnout

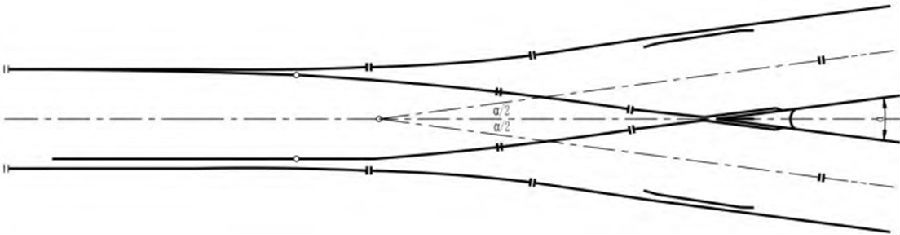

Equal Split Turnout

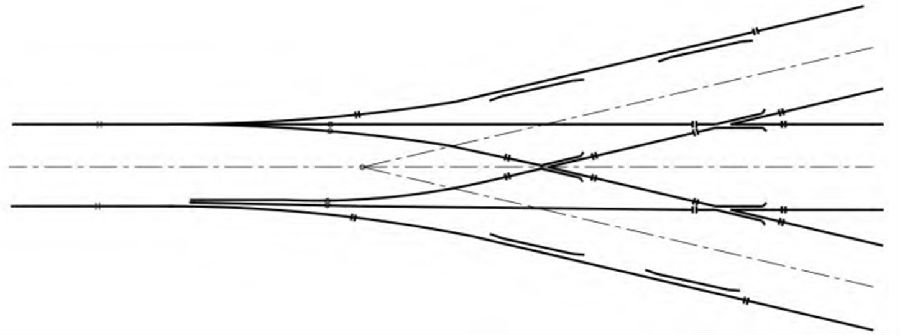

Three-throw Turnout

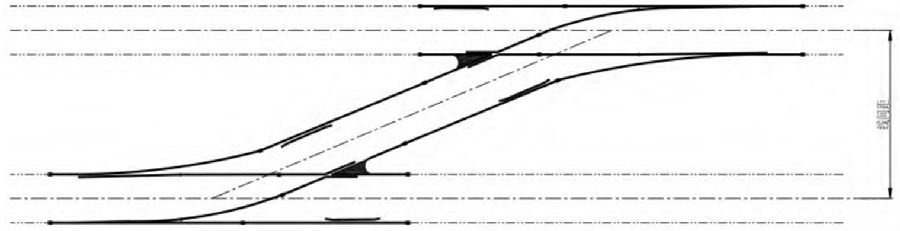

Single Crossover

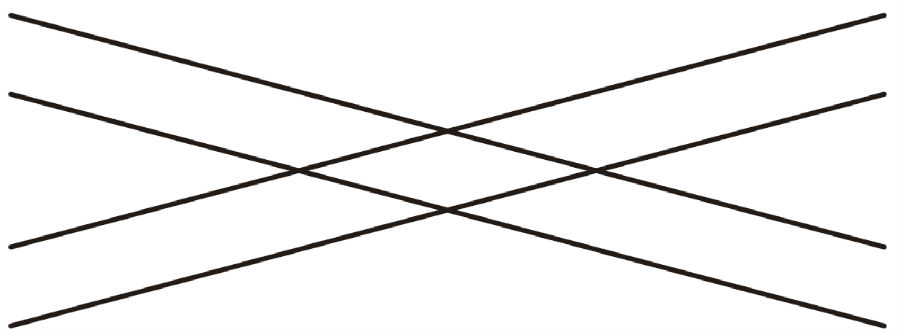

Diamond Crossing

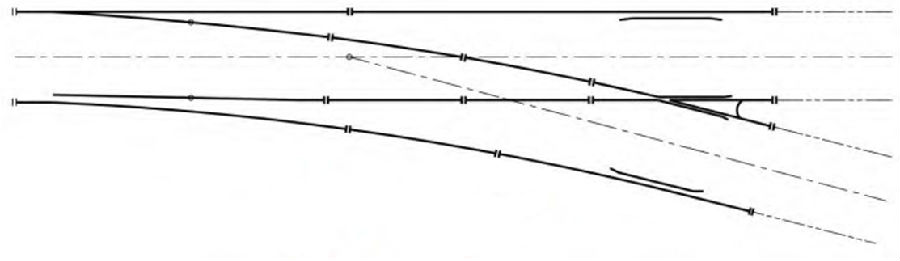

Mixed Gauge Turnout

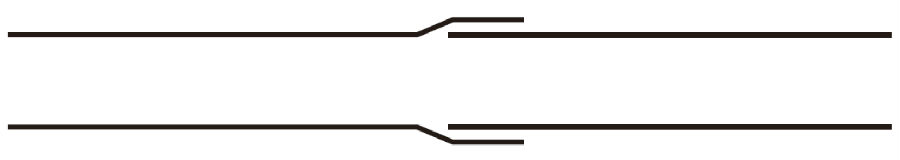

Rail Expansion Joint
 |  |
| |

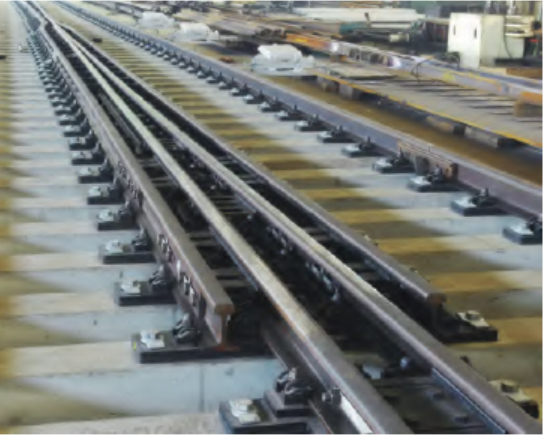

| 60kg/m Rail 1:42 SimpleTurnout for 350km/h Passenger Dedicated Line (Ballastless) | 60kg/m Rail 1:18 Simple Turnout for 350km/h Passenger Dedicated Line (Ballastless) |
 |  |

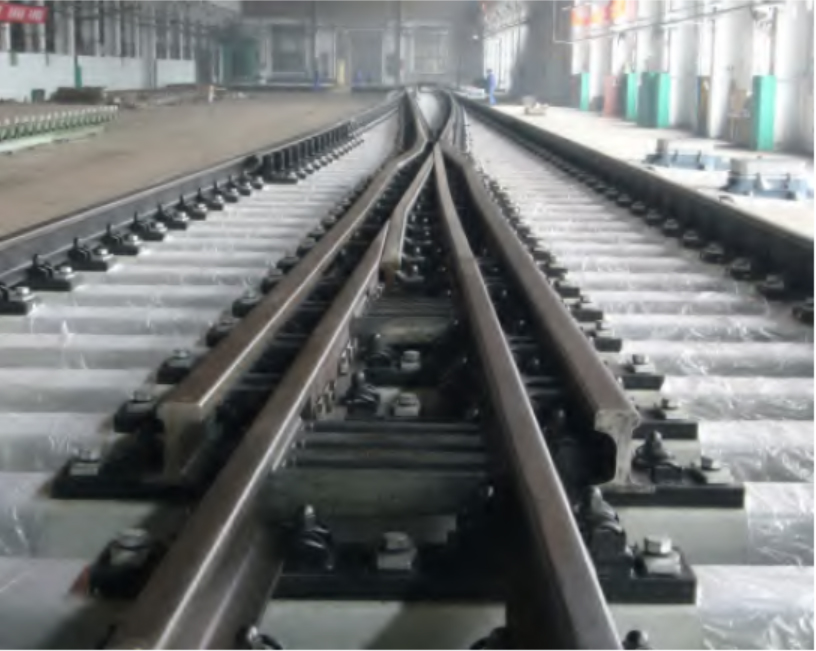

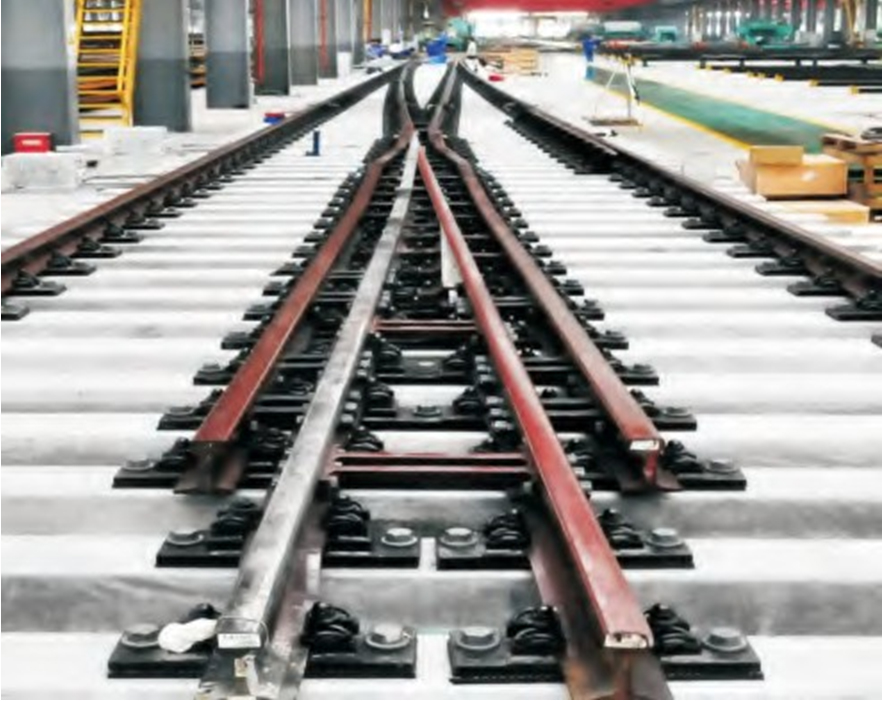

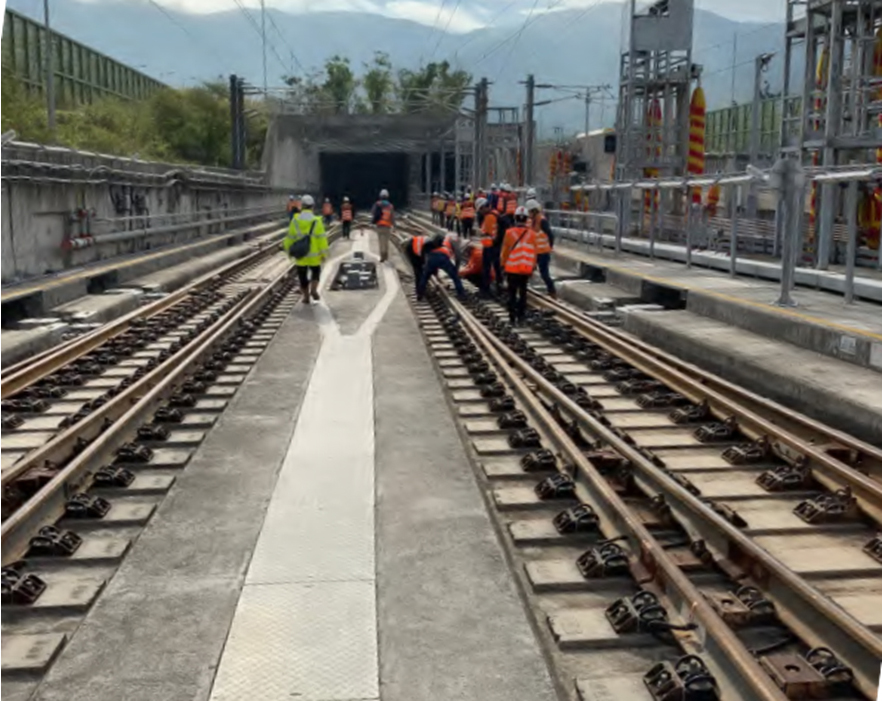

UIC60 1:18 Turnout for 220km/h High Speed Line Exported to Venezuela | CHN60 1:12 High Speed Turnout for Guangzhou-Shenzhen-Hongkong PDL (HongkongMTR) |
| High Speed Turnout | ||||
| Application | Passenger Dedicated Line, Mainline | |||
| Track | CWRLine, Ballasted, Ballastless | |||
| Standard | EN, UIC, BS, AREMA, JIS, SRT, TB | |||
| Railtype | 60kg/m, 75kg/m; P65, UIC54, UIC60, 54E1, 60E1,115RE,132RE, 136RE,etc. | |||
| Passing speed in straight track | （1）passenger transport：350km/h, 250km/h, 200km/h； （2）freight transport：120km/h | |||
| Axle load | （1）passenger transport：17t；（2）freight transport：23t, 25t | |||
| Track gauge | 1435mm | |||
To read more or download the product brochure, please click the link below:
